Wes Bos
wesbos.com
@wesbos
jQuery Toronto, samedi mars 2, 2013
Independent Web UI Designer / Web Developer
I'm from Toronto, Canada
I design and build the front end of applications and websites.
Huge JavaScript / CSS3 / HTML5 Fan.
I'm writing a book on Sublime Text
Lead Instructor at Ladies Learning Code and HackerYou
I hang out on Twitter @wesbos
Also on LinkedIn linkedin.com/in/wesbos
About accessing hardware inside mobile browsers
Device APIs that we have today, or ones that are coming in the near future
No phonegap, no ruby motion, no webviews.
Obviously HTML5 isn't a solution to everything
Many stories to support both sides of the argument
This talk isn't about how HTML5 is going to replace native
It's about how we finally are getting the same APIs in the browser, and what we can use them for in both apps and mobile websites.
Today we look at 4 different types of hardware access for the mobile web and then leave some time at the end for questions.

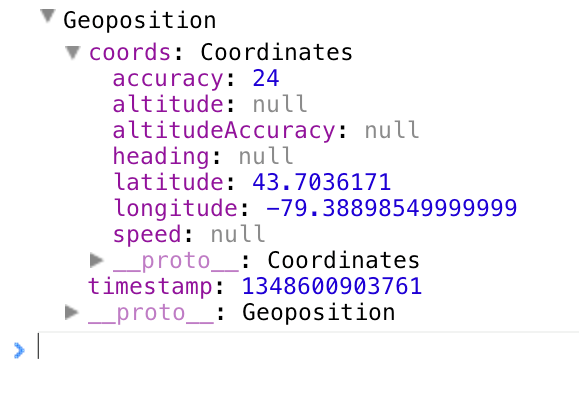

HTMl5 geolocation gives us navigator.geolocation.getCurrentPosition()
You'll see the speed is returned as null. On mobile devices, speed is returned as meters per second.

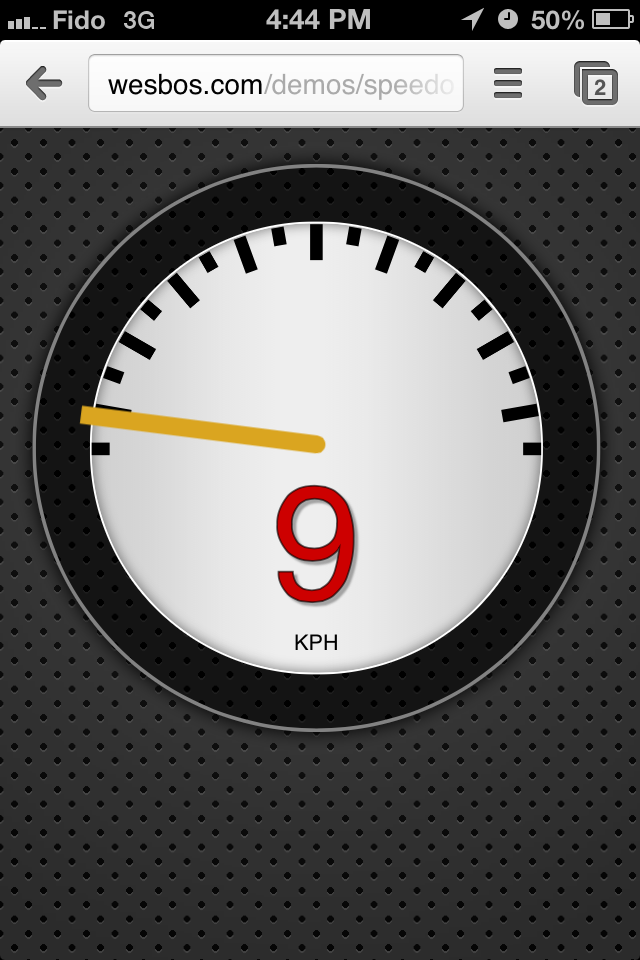

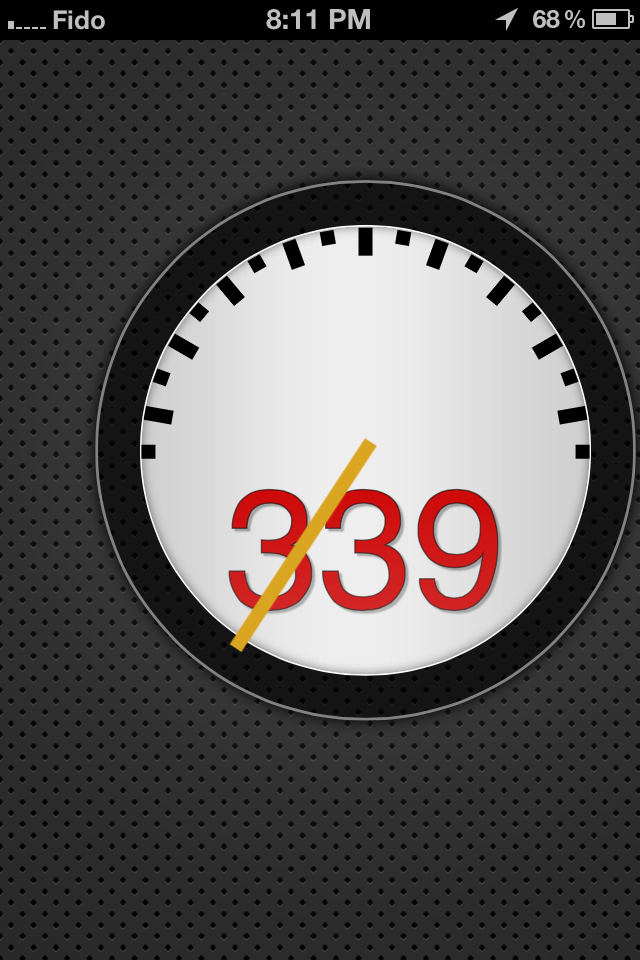

I thought it would be fun to try and make a pure HTML5/CSS3 Speedometer
Start off with some basic HTML
<div class="meterInner metal">
<span class="needle">
<span class="needleInner"></span>
</span>
<ul class="ticks">
<li></li><li></li><li></li><li></li><li></li><li></li><li></li><li></li><li></li><li></li><li></li><li></li><li></li><li></li><li></li><li></li><li></li><li></li><li></li>
</ul>
<div class="speedWrapper">
<span class="speed">255</span>
<span class="speedMeasure">kph</span>
</div>
</div>
Use the geolocation API and the watchPosition() method to track the speed
navigator.geolocation.watchPosition(function(d){
sp.writeSpeed(d);
});
And then calculating the speed and visually displaying it was a breeze too
sp.writeSpeed = function(d) {
var currSpeed = d.coords.speed; // Meters per second
currSpeed = currSpeed * 60 * 60; // meters per hour
currSpeed = currSpeed / 1000; // k/hr
// Check if we are converting to MPH
if (sp.localStorage.measure === 'm') {
currSpeed = currSpeed * 0.621371192;
}
// needle
var speedPercentage = currSpeed / sp.opts.maxSpeed,
degrees = speedPercentage * 180;
$('.meter .needle').css({'-webkit-transform' :
'rotate('+degrees+'deg) translateZ(0) translate3d(0,0,0)'});
}
Perhaps the biggest limitation of mobile websites in the past was not being able to access a users filesystem / camera roll from the browser.
What if we want the raw binaries of files right inside the browser?
Examples:An old friend in the browser world, been around in Android for some time, but only recently supported in iOS 6.
There are no polyfills or shims, so its been kind of a showstopper
UNTIL:
<input type="file">

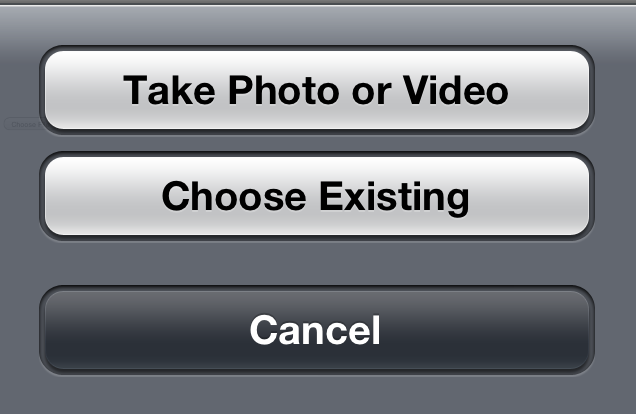

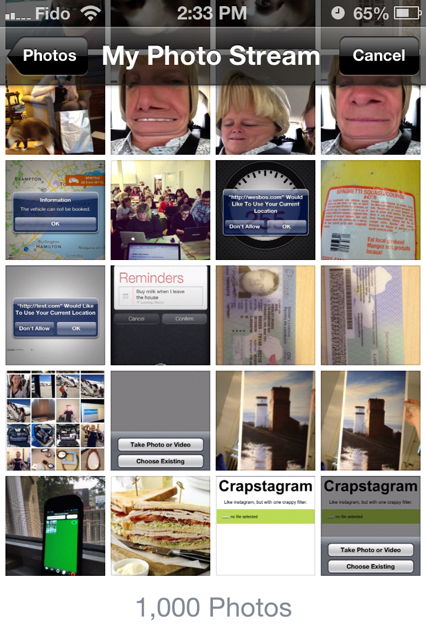

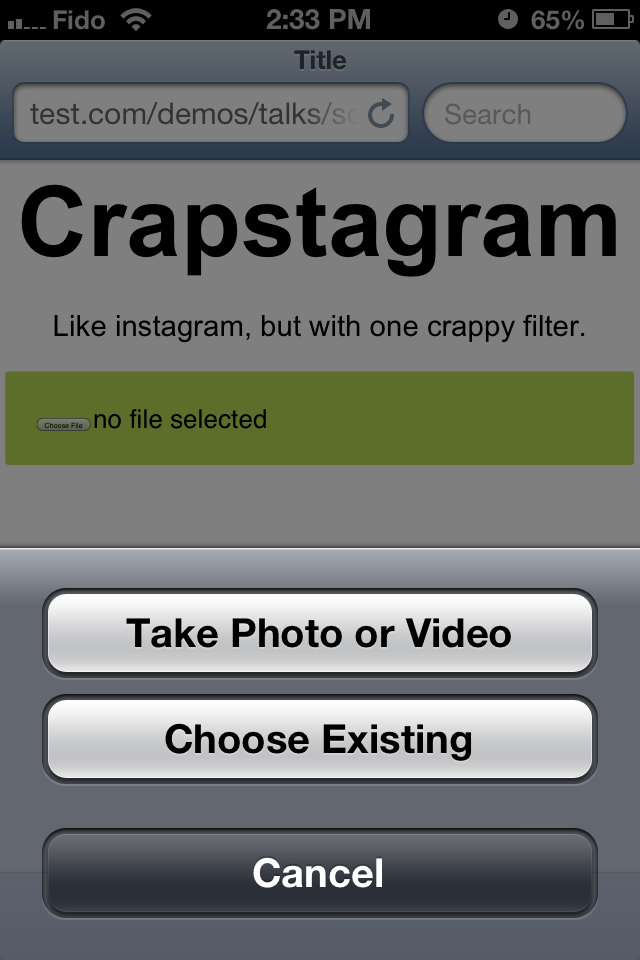

Clicking this brings up the Camera roll
Obviously we can upload the file to the server
BORING
But its 2013, we want to work with files in the browser!
The HTML5 spec allows browsers to access a local filesystem or files that a user selects.
Once selected, the browser has the blob or the raw binary data.
This means we can upload images and manipulate them right inside the browser!

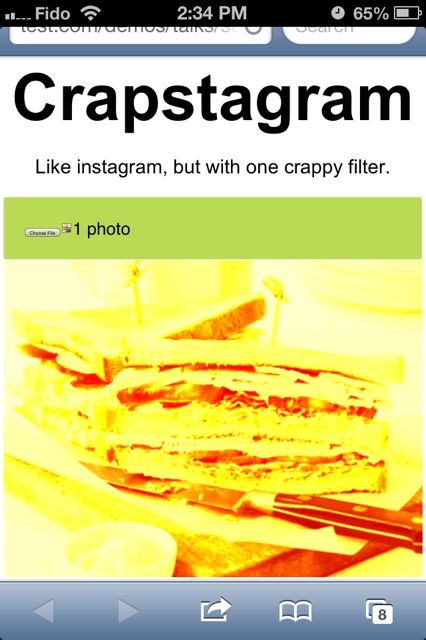

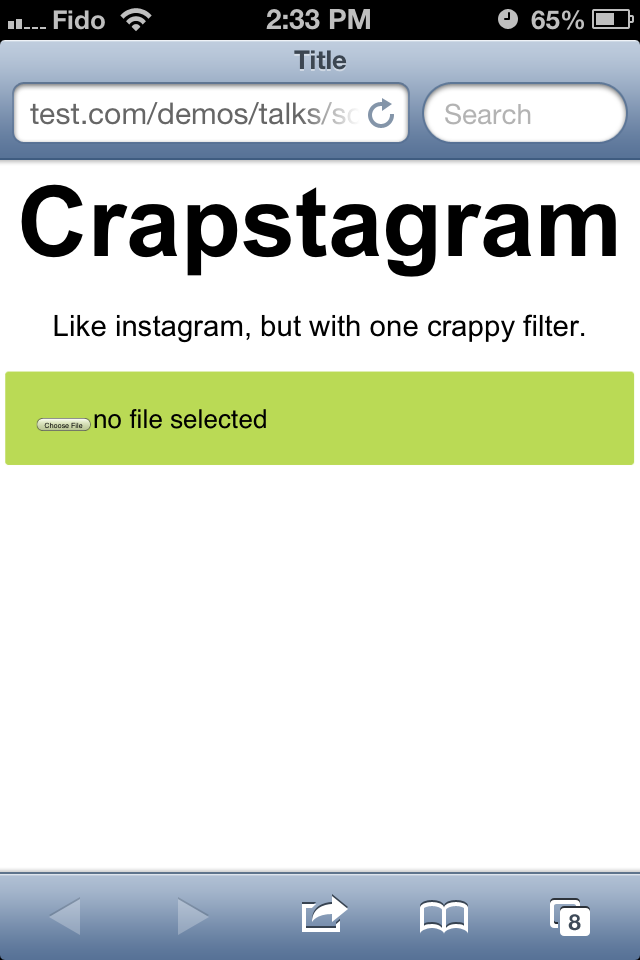

A simple use case for this is building a crappy version of instagram but doing it entirely in the browser.
Let's step through how we did this
The Accelerometer is a chip inside devices that gives us info on how the user is holding and moving their device.
It is helpful for determining what orientation someone is holding the phone, and has been used in a ton of games.
Accessing it with JavaScript is really easy and can be a ton of fun!
To hook into the accelerometer, you simple bind to the following events:
deviceorientation MozOrientation devicemotion
There is some normalization that needs to be done across devices
If we take a look at the previously mentioned deviceorientation event, we will see something called webkitCompassHeading
This returns the number of degrees relative to north.
You can also get webkitCompassAccuracy with is the # of degrees it is accurate to.
window.addEventListener('deviceorientation', function(e) {
var rel = e.webkitCompassHeading,
giveOrTake = e.webkitCompassAccuracy;
console.log('You are',rel,'degrees relative of north,
give or take',giveOrTake);
});

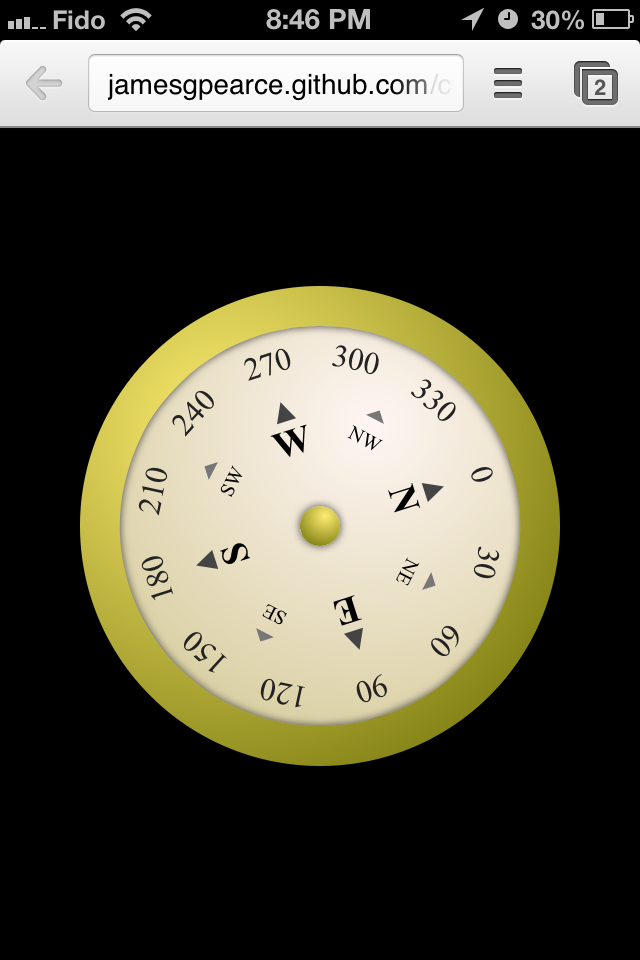

James Pearce wrote a really great example of how it works
http://tripleodeon.com/2011/10/taking-a-new-device-api-for-a-spin/ http://jamesgpearce.github.com/compios5/
There is a new technology on the block called WebRTC
Still heavily under development but we are able to create something called a PeerConnection which allows for a 1:1 channel between two peers.
We can stream audio, video and eventually data/files over this connection without relying on a server in the middle.
We would only need websockets/xmlHTTPRequest to do the initial handshake
The real benefit here is that we will be seeing HTML5 Chatroulette clones!
We are now able to get webcam access, 100% in HTML/JavaScript!
Thats right, no flash required.
You are able to stream your webcam right into an HTML5 Video element.
We use a method called getUserMedia();
Once the video is streaming into a HTML5 video element, you can then dump the frames into a canvas.
HTML5 Canvas gives you pixel level detail of an image, and we can play with those pixels!
I've done some fun stuff on the desktop
So, thats cool on the desktop, but what about mobile?
WebRTC is very new, so not very many mobile or desktop browsers have implemented getUserMedia();
Lucky for us, Opera Mobile for android does support it! (and has for a while)
In order to grasp the concept and use of this, I need to tell you about my #FirstWorldProblem
I don't want to get up and check every few hours,
like a sucker.
Wes' Law:
Any problem will go away if you throw enough technology at it.
Pull camera video feed into a web page, dump into canvas, and take a frame every 3 seconds.
Write some code to analyze and compare that frame to the previous one
If the two frames are different enough, we have detected motion.
Already at step 3, we have a motion detection / security camera
Not good enough, I need something to notify me and I want it to be instant!
We have two files:
client.html - running on the device with a camera
viewer.html - running on anything that wants to view detected frames
When motion is detected, send that image over a websocket to everyone with viewer.html open.
At this time, we can also use the node.js server to send emails, trigger SMS, push notifications and so on...
Anyone on the other end (viewer.html), sees a stream of triggered photos.
This could obviously be stepped up with email/sms/growl
Device APIs in the browser let you access the hardware directly like many native apps do
While they aren't your common browser APIs, they can definitely come in handy as well as open the door for some previously impossible use cases
Device support in some areas is great, and others have a long road ahead of them.
As browsers become faster and hardware get beefier, we are able to push the limits of what we can do in a website.
All code / slides will be up online soon if not already on github.
Thanks!
